Welding Symbols Worksheet

The arrows of the symbol between the two letters indicate that a weld needs to run the full length between the two marks. It denotes the distance between the root edges of two metals that need to be joint. This is just barely skimming the surface of weld symbols training.

Welding Symbols Diagrams Types Weld Guru

Groove Welding Symbols Interpretation Of Metal Fab Drawings

Welding Symbols For Metal Fabrication Sams Fabrications

Easy Guide To Welding Symbols

30 Welding Symbols Ideas Welding Welding Tips Welding Projects

Welding Symbol Chart

Welding Symbols

Welding Symbols An Introduction To Reading Drawings Welding Projects Welding And Fabrication Welding Tips

Welding Symbols Diagrams Types Weld Guru

biogeochemical cycles worksheet ordering decimals worksheet missing sounds worksheets for kindergarten writing equations from tables worksheet summarizing worksheets 4th grade habitat worksheets for kids numbers 1 to 10 worksheets for kindergarten kindergarten math worksheet pdf number 9 worksheets free printable life skills worksheets singapore math multiplication worksheets long multiplication worksheets year 5 adding two digit numbers worksheets letter h tracing worksheets preschool 4th grade rounding worksheets error analysis math worksheet 6th grade reading worksheets printable free printable math multiplication worksheets

What Are The Basic Welding Symbols

Lincoln Electric Education Deciphering Weld Symbols Lincoln Electric Education

Http U12133 Fs Cvut Cz Assets Subject Files 137 Tjc Lecture 07 Welds Types Symbols Pdf

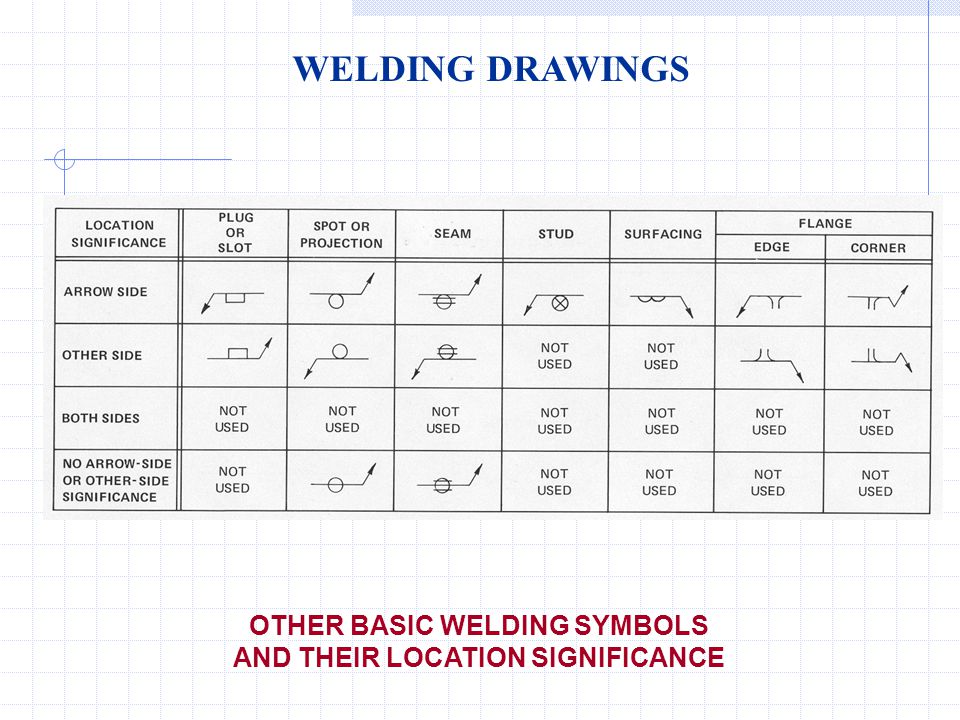

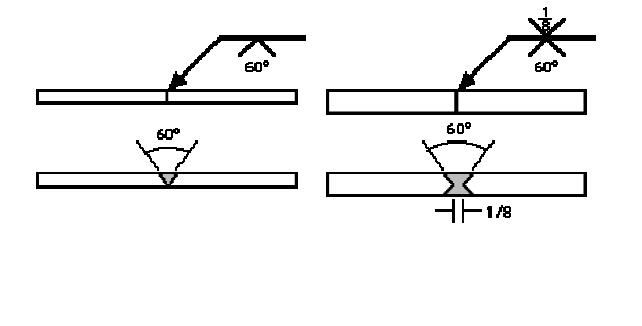

It mentions the angle of the opening between the two welded parts.

Welding symbols worksheet.E groove weld size.Diagrams types weld guru projection welding resistance spot resistance seam arc seam arc spot plug welding symbols.If the welds are symmetrical on both sides of the plate the dashed line is omitted.

1 4 inch weld that s 6 inches long.It indicates the size of the groove weld.Other side fillet weld c.

Weld symbols on the full reference line relates to welds on the near side of the plate being welded.For these symbols the arrow connects the welding symbol reference line to the outer surface of one member of the joint at the centerline of the desired weld.Single v groove weld b.

Single v arrow side groove weld d.The member to which the arrow points is considered the arrow side member.When the weld symbol hangs below the reference line it indicates that the weld must be performed on the arrow side of the joint.

Joint design welding symbols cwb group groove welds can be classified.For example in the next drawing a fillet weld is specified on the arrow side.Identify the following welding symbol below.

1 4 inch weld that s 2 inches from one end and 4 inches from the other.Welding symbols chart an explanation of the basics.If you have a questions please let us know by replying to the post.

A printable chart of welding symbols with their meaning.Complete joint penetration groove welds cjp partial joint penetration groove welds pjp in terms of shape.Two 1 4 inch welds that are 4 inches apart.

The other essential part of the welding symbol is an arrow that connects to the reference line and points to the location where a weld is required.The drawing will show two points like an x and a y for example between sections needing welding.1 4 inch welds that are 2 inches long and have 4 inch spacing.

Double v groove weld c.This placement is important.The arrow may be connected to either end of the reference line and point up or down.

9 basic steps to read welding symbols welding answers the 9 steps below represent a very basic introduction to welding symbols.Welding symbol examination 12.This symbol states that your welds should be.

In terms of efficiency.Lincoln electric education deciphering weld symbols.The arrow may point up or down.

Welding symbol quiz the ranger station 1 4 inch weld 6 inches from the edges.Drawing guide weld symbols v and f a symbol note.Every weld symbol must consist of an arrow and a reference line.

You can see the actual.Arrow side lap weld d.It indicates the shape of the finished weld bead.

Weld symbols on the dashed line relates to weld on the far side of the plate.Identify the following welding symbol below.This symbol has a flag showing the weld needs to be done on site not in the workshop.

Arrow side fillet weld b.Welding symbols an introduction to reading drawings the weld symbol may also be placed above the reference line rather than below it.Sample the illustration shows the classification system.

Square bevel v j u flare bevel flare v.The side of the joint to which the arrow points is the arrow side of the joint.Other side lap weld.

1 4 inch welds that are 2 to 4 inches in length.
